Product introduction
Universal rope electric hoist, a mature product promoted by Nucleon for many years, has the advantages of durability, safety, reliability and wide application. It is suitable for lifting and handling of materials in workshops, warehouses, wharves, po
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Hoisting mechanism of the universal rope electric hoist adopts the classic "一" type tandem structure, in which the motor and reducer are arranged on both sides of the drum group, the motor drives the power to the reducer side through the transmission shaft arranged inside the drum device, and splines of the output shaft on the the reducer drive the drum group to realize the coiling of the rope.
The electric hoist is divided into CD1 model and MD1 model according to single and double speed; According to the headroom mode, it is divided into standard headroom and low headroom; It is divided into running type and fixed type according to walking performance.

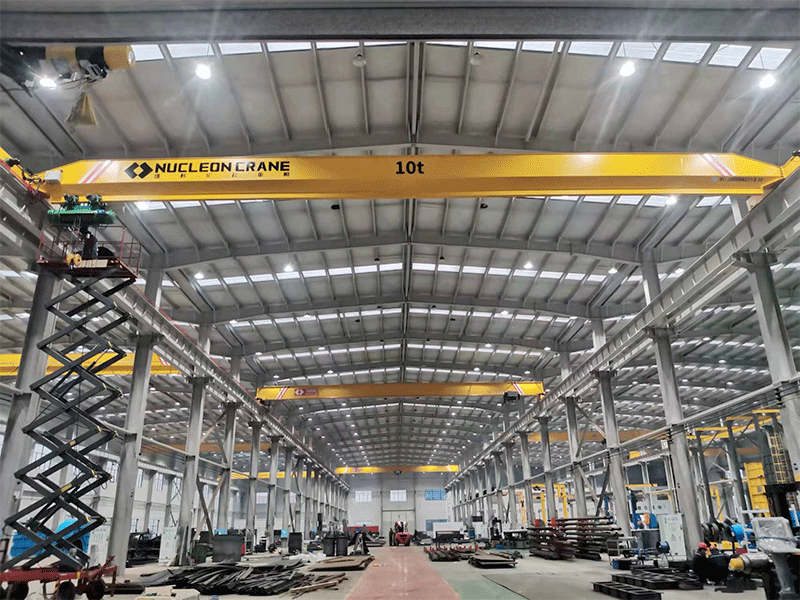

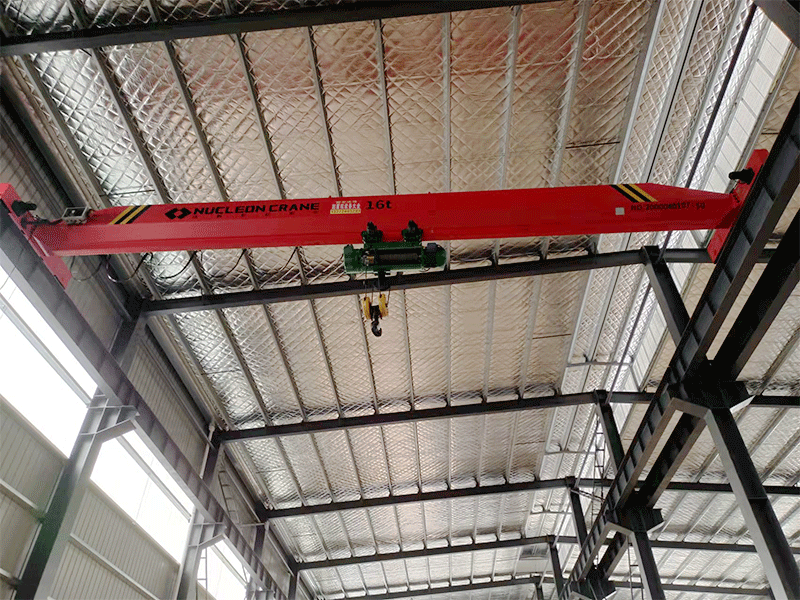

The electric hoist has a wide range of applications, which can be used with fixed rail, electric single beam crane, electric suspension crane, hoist gantry crane and hoist double beam crane.
Product Features:
(1)Strong rigidity, large margin, solid and durable
(2)Advanced techniques and fine appearance
(3)Easy control, convenient operation and maintenance
(4)Wide application, high versatility and good maintainability
Performance Parameters:
Lifting capacity: 1t～32t
Lifting height: 6m～90m
Work level: M3～M5
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
