Product introduction

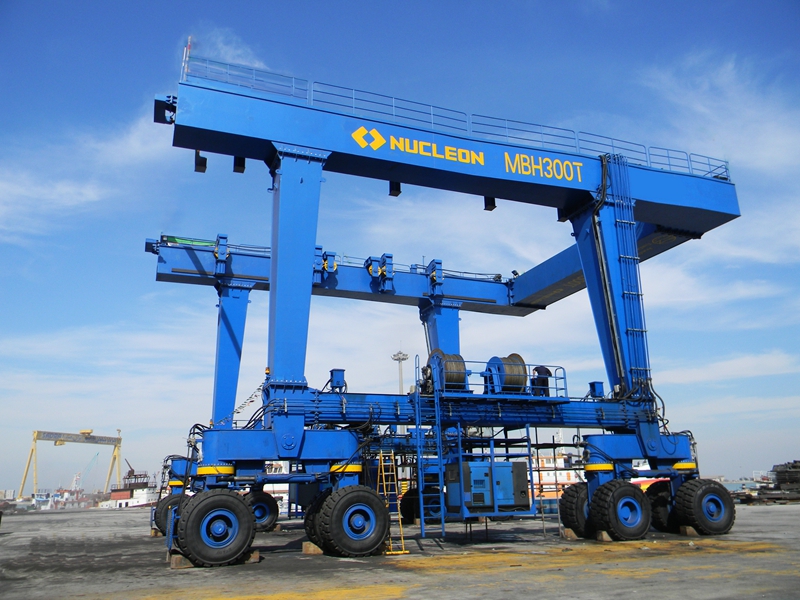

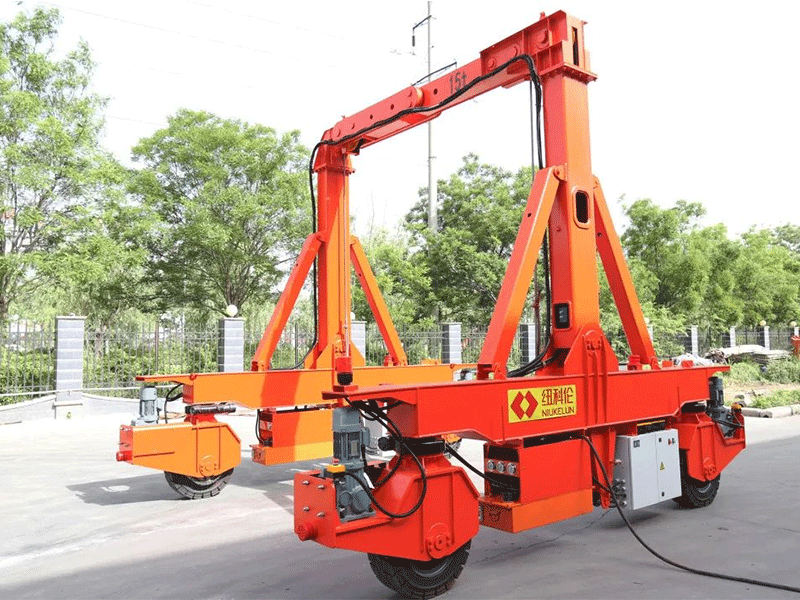

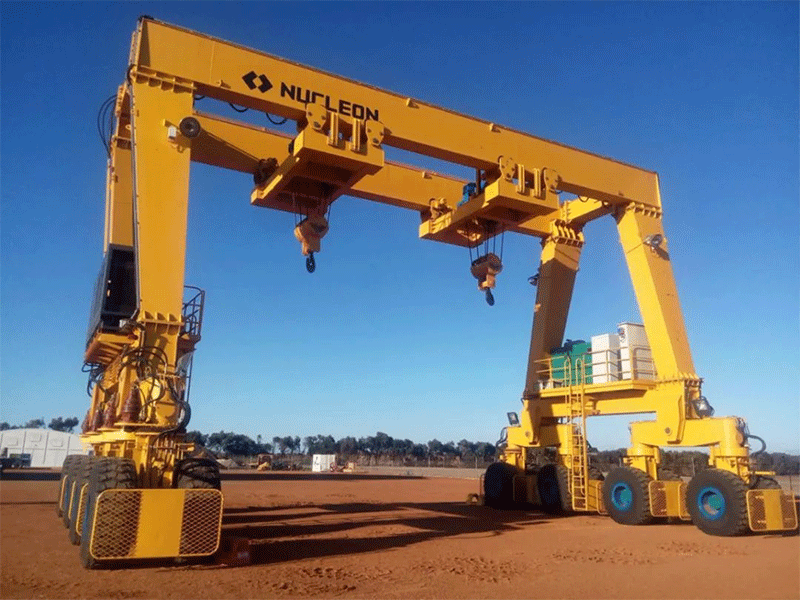

Rubber-tyred crane is a kind of mobile lifting equipment, which is safe and reliable to lift and has various steering modes, its own power and is flexible. It has a variety of core technologies, such as synchronous lifting at multiple lifting points,
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
Rubber-tyred crane is a kind of mobile lifting equipment, which is safe and reliable to lift and has various steering modes, its own power and is flexible. It has a variety of core technologies, such as synchronous lifting at multiple lifting points, tire non slip technology, synchronous detection feedback control, flexible steering control, and internal force release of gantry on complex roads.
Product Features:
(1) The equipment has its own power, and there is no dead angle in the whole area.
(2) Lifting with multiple points or multiple equipment, which has high synchronization, stability and reliability.
(3) A variety of steering modes are used in combination, with straight, oblique, in-situ rotation, Ackerman steering and other modes, which are efficient and energy-saving.
(4) It can be applied to concrete pavement, gravel pavement, gravel pavement and other pavement conditions. The gantry hinge design can eliminate the internal stress caused by uneven pavement.
(5) According to special needs, self folding device can be installed to reduce the space occupation and the convenience of transfer.
Performance Parameters:
Lifting capacity: 32t～1200t
Lifting speed: 0~2m/min (full load), 0~5m/min (no load)
Running speed: 0~20m/min (full load), 0~35m/min (no load)
Climbing capacity: 2% ~ 4%
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof?limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
